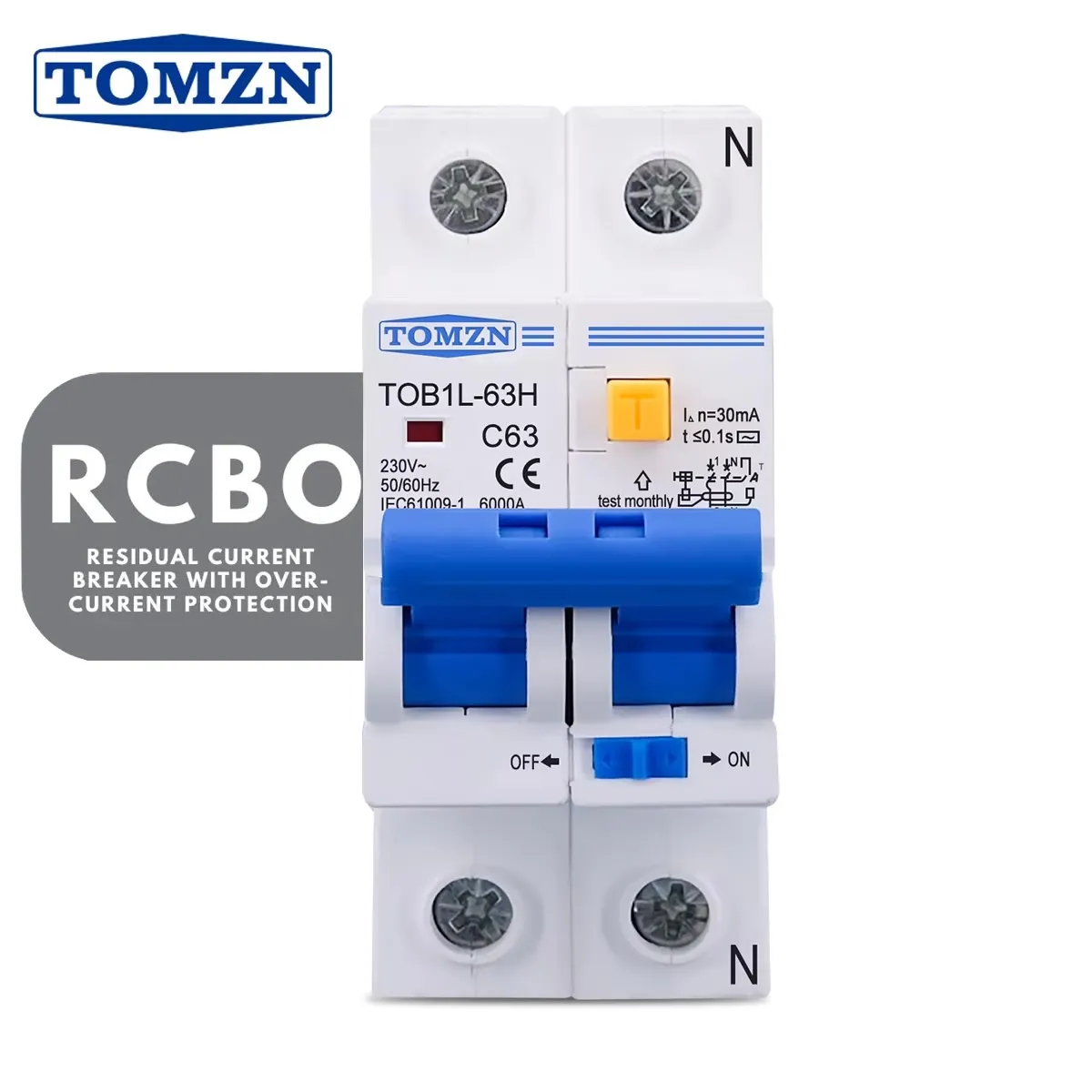

TOMZN RCBO TOB1L-63H 2P 63A 230V AC 50Hz/60Hz Residual Current Circuit breaker with over current and Leakage protection RCBO
SKU: TOB1L-63H
৳690
- TOMZN Residual Current Breaker with Overcurrent Protection.
- Warranty: 6 Months (Except Burn & Physical Damage)
- Made in China
🚚
Nationwide DeliveryInside Dhaka 1–2 days
💵
Cash on DeliveryPay when you receive
✅
Genuine ProductQuality checked
🔁
Easy ReturnWithin 7 days
TOMZN RCBO Residual Current Circuit breaker with over current and Leakage protection in Bangladesh

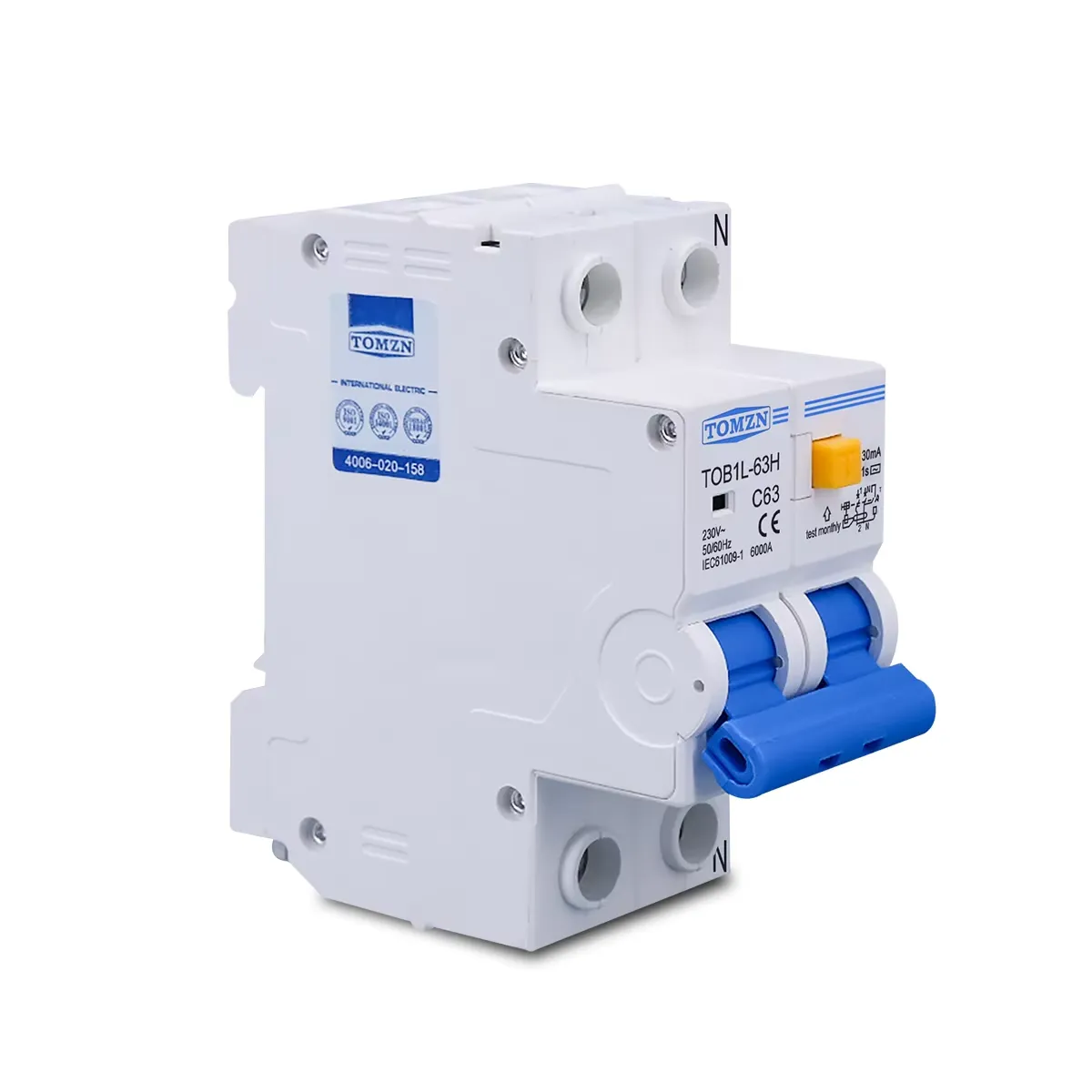

The TOMZN TOB1L-63H RCBO is a 2-pole (2P) residual current circuit breaker with over-current protection (MCB function) and leakage protection (RCD function). It’s designed to protect both line (L) and neutral (N) wires in residential and industrial electrical installations.
| Specification | Description |
|---|---|
| Model | TOB1L-63H |
| Poles | 2P (Phase + Neutral) |
| Rated Current (In) | 63A |
| Rated Voltage (Ue) | 230V AC |
| Frequency | 50Hz / 60Hz |
| Residual Operating Current | 30mA (typical, adjustable in some models) |
| Breaking Capacity | 6kA |
| Tripping Characteristic | Type C (standard usage, handles moderate inrush currents) |

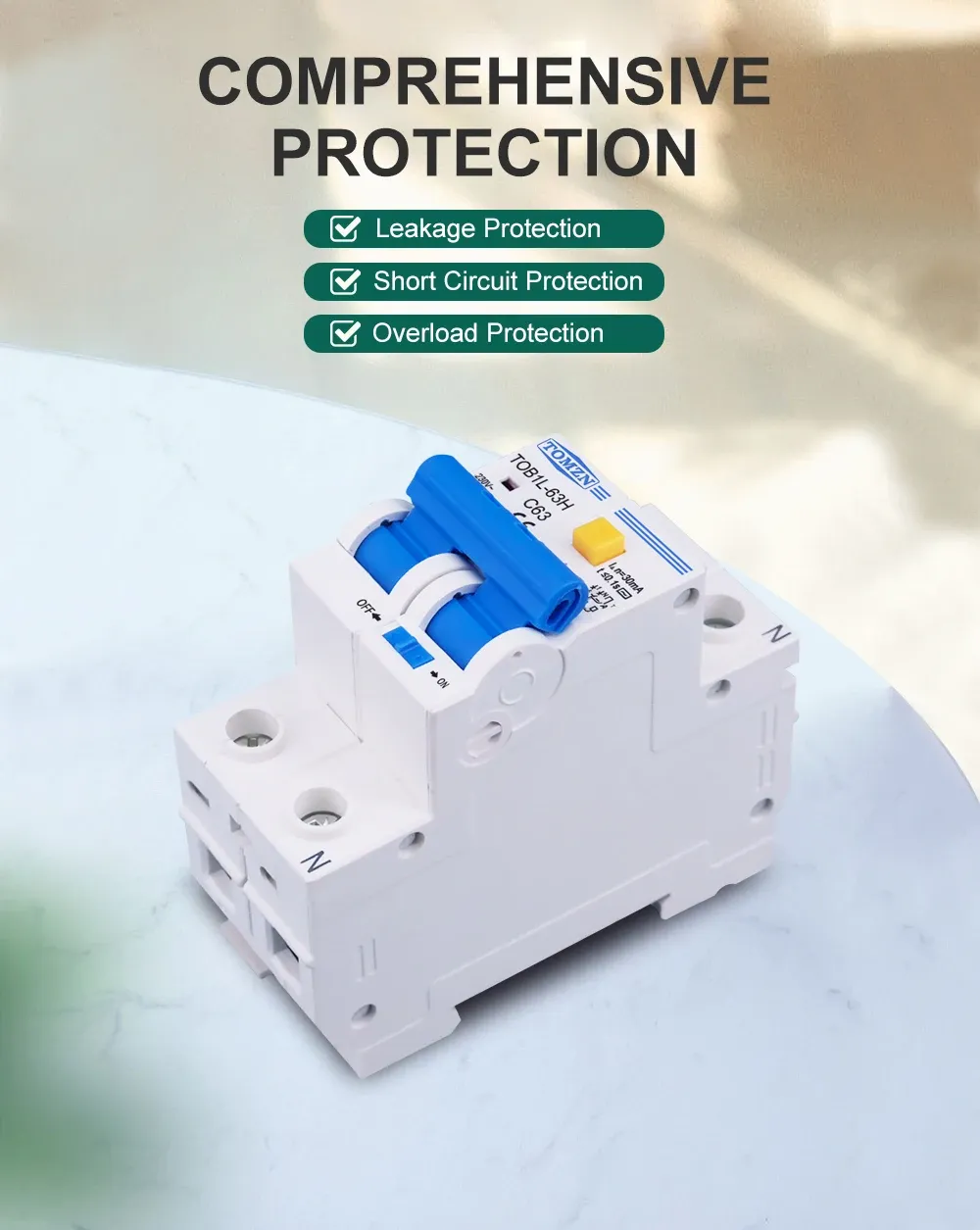

| Protection | Overcurrent, Short Circuit, Earth Leakage |
| Mounting | DIN Rail 35mm (standard) |
| Cut-off | Cuts both L (Live) and N (Neutral) during fault condition |
| Application | Residential, commercial, and light industrial usage |
| Combines the functionality of MCB + RCD in one compact unit | |
| Enhances safety by disconnecting both lines during faults | |
| Responds rapidly to ground fault or overload | |
| Easy installation inside distribution boards | |
| Provides added protection against electrical fires and electrocution | |
| Can detect leakage as low as 30mA | |
| Features | Household electrical circuit protection Air conditioner or geyser line protection Solar inverter AC output protection Small office distribution board Shops and light commercial spaces Always install RCBOs with correct wiring and grounding Make sure the selected current rating suits your load It is recommended to install by a qualified electrician |
